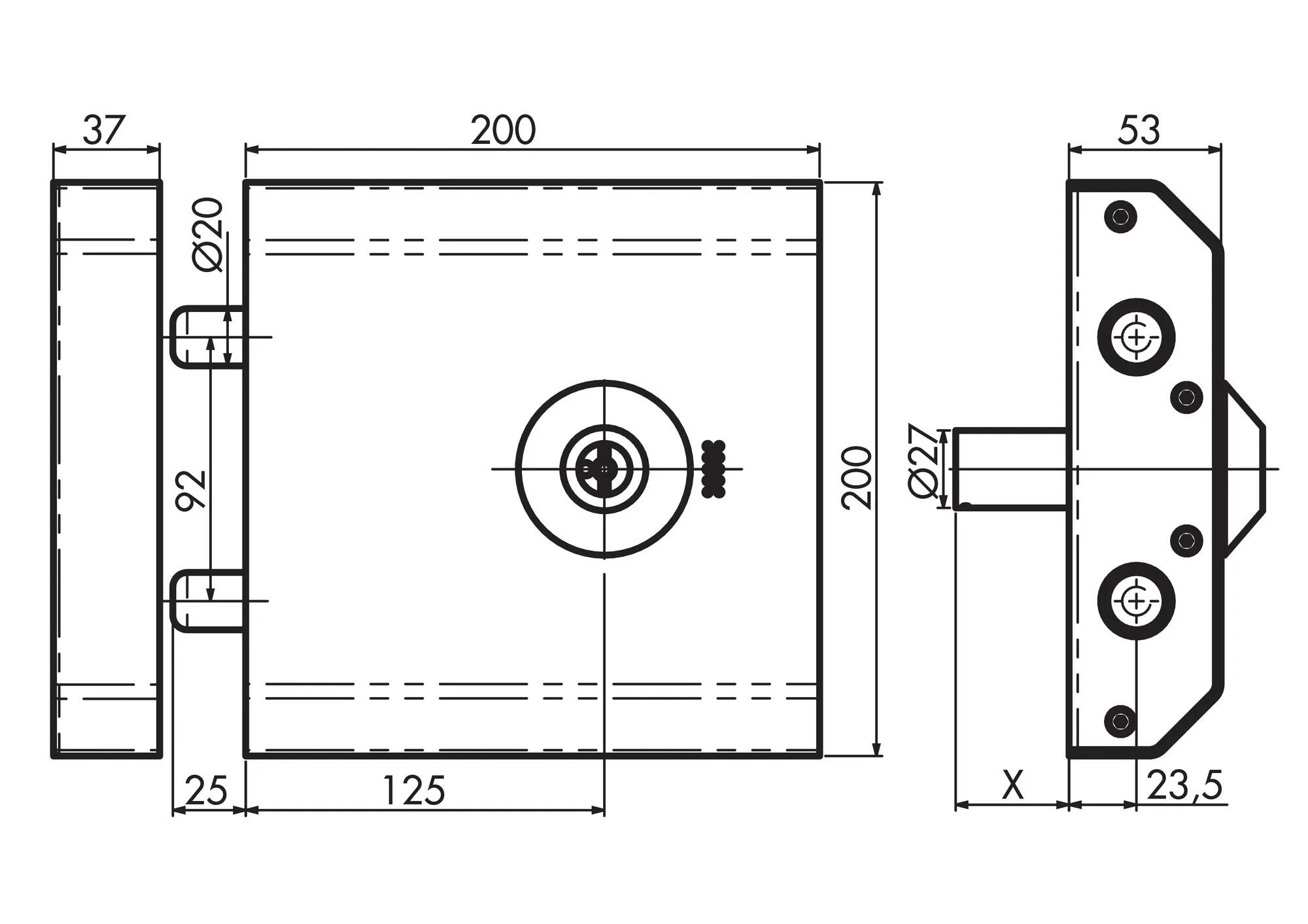

View technical drawing

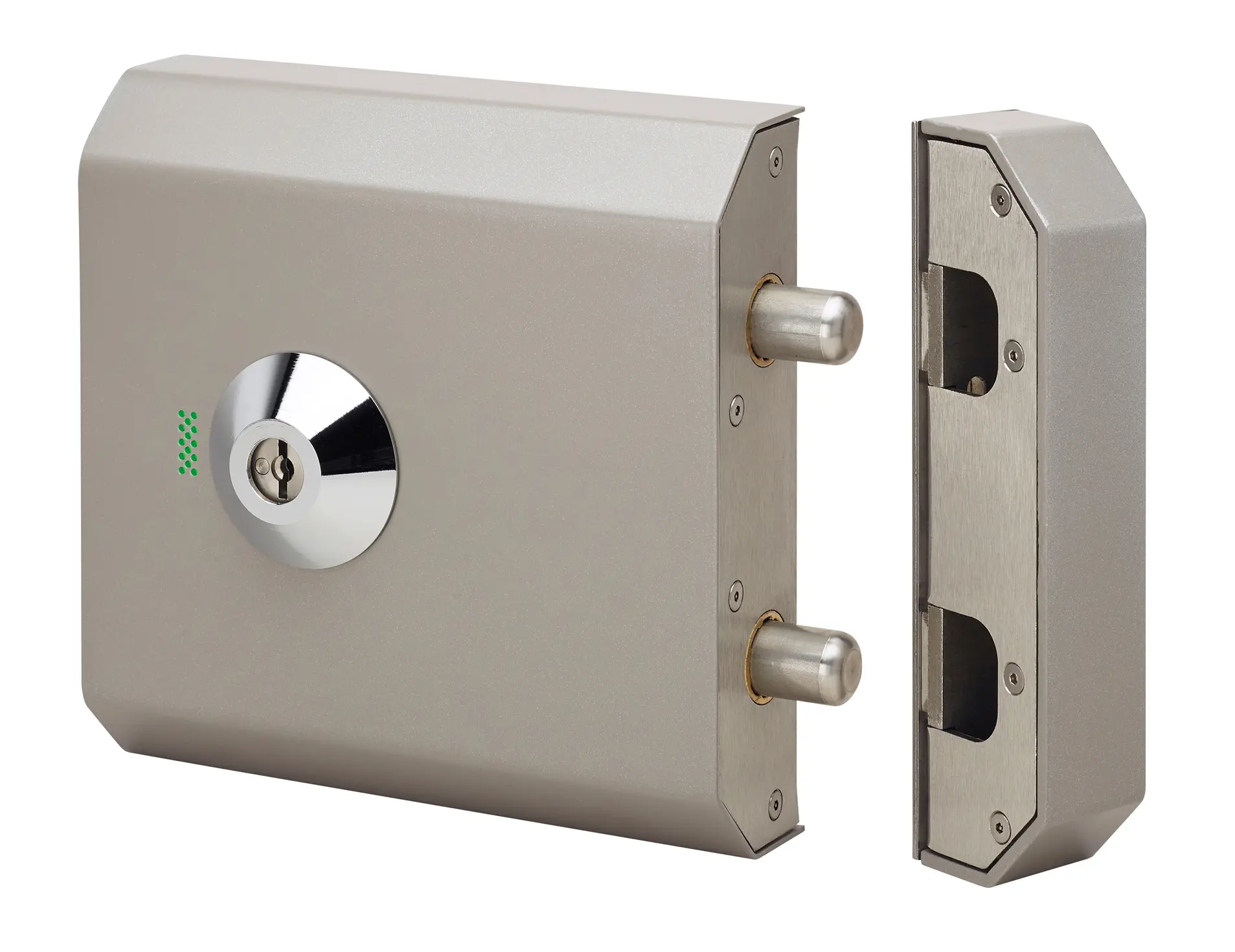

21937 2-point motorized horizontal lock

2-point reinforced motorized lock for heavy door or exterior gate.

Features

  • Reinforced rim lock for heavy door or exterior gate.
  • Operation by integrated electronic card.
  • Green and red indicator light indicating door status.
  • Outdoor operation.
  • Certified lock for door and ram gate 600 Kg, according to recommendations.
Motorized
European Profile Cylinder

Suggested application of use

Prisons, Financial, Industrial, Medium to Large Sized Businesses, Plants, Small to Medium Sized Businesses, Airports, Transport

Specifications

Technical features

Water ResistantYes
Patent ProtectionYes
Lock Application TypeRim Lock
Locking Points2 points
Locking TypeRound Cylinder Lock, European Profile Cylinder
Closing MechanismMotorised
Locking ElementsRound Bolt
ReversibleYes
Lock HandingReversible
Operation ModeFail-safe
Standard Warranty1 Year
Communication TechnologyRS 485

Patent ProtectionYes

Case Height (mm)200
Case Depth (mm)200
Case Thickness (mm)53
Case MaterialStainless Steel
Deadbolt MaterialStainless Steel
Deadbolt DimensionDiamètre 20mm
Deadbolt Throw (mm)25
Strike Thickness (mm)53
Strike Depth (mm)37
Strike Height (mm)200
Power TypeWired
Current ConsumptionConsommation maximale: 600mA sous 48VDC, Consommation en veille : 200mA sous 48VDC
Operating Temperature (Celsius)-20° to 60°
Voltage TypeDC
