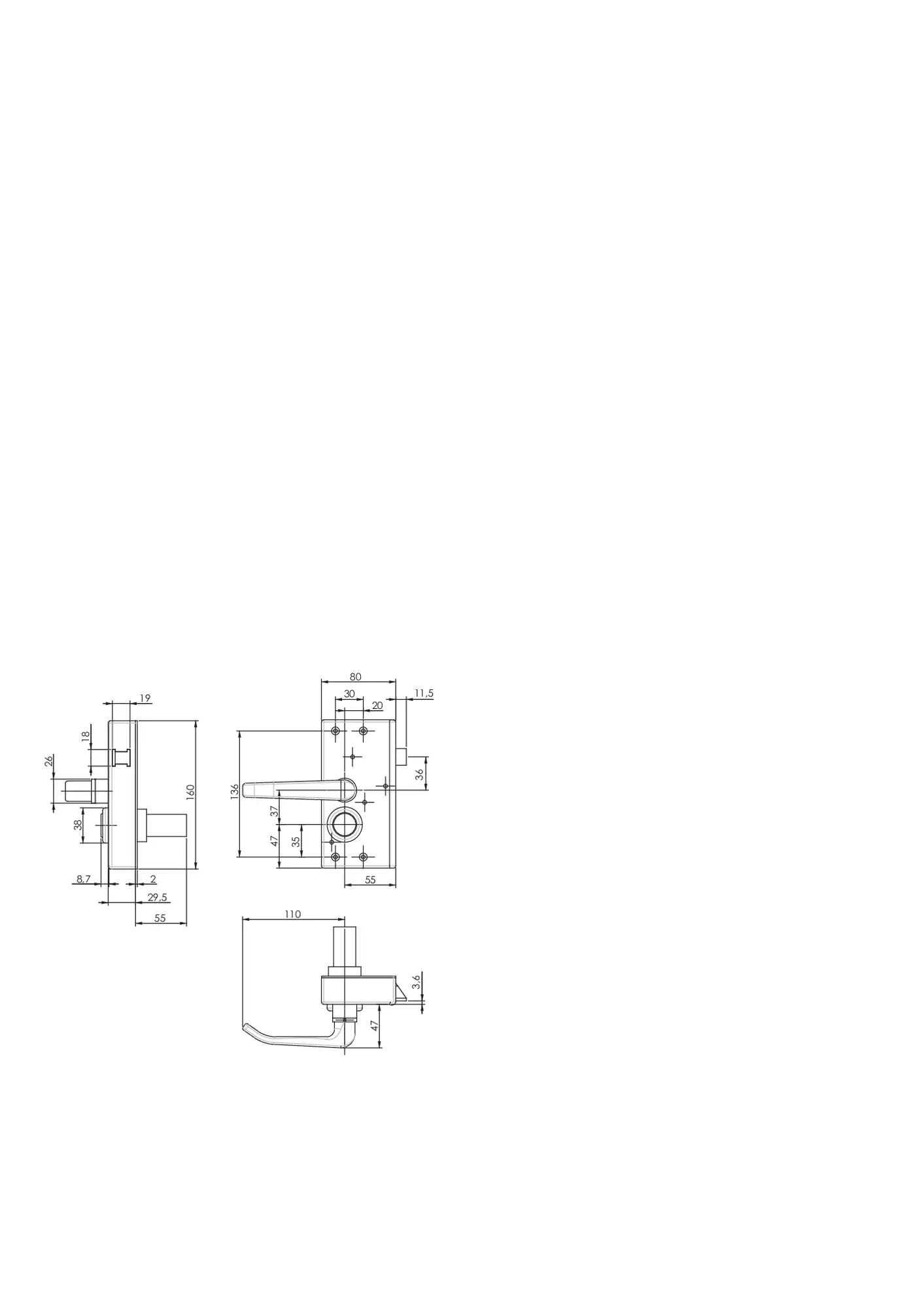

View technical drawing

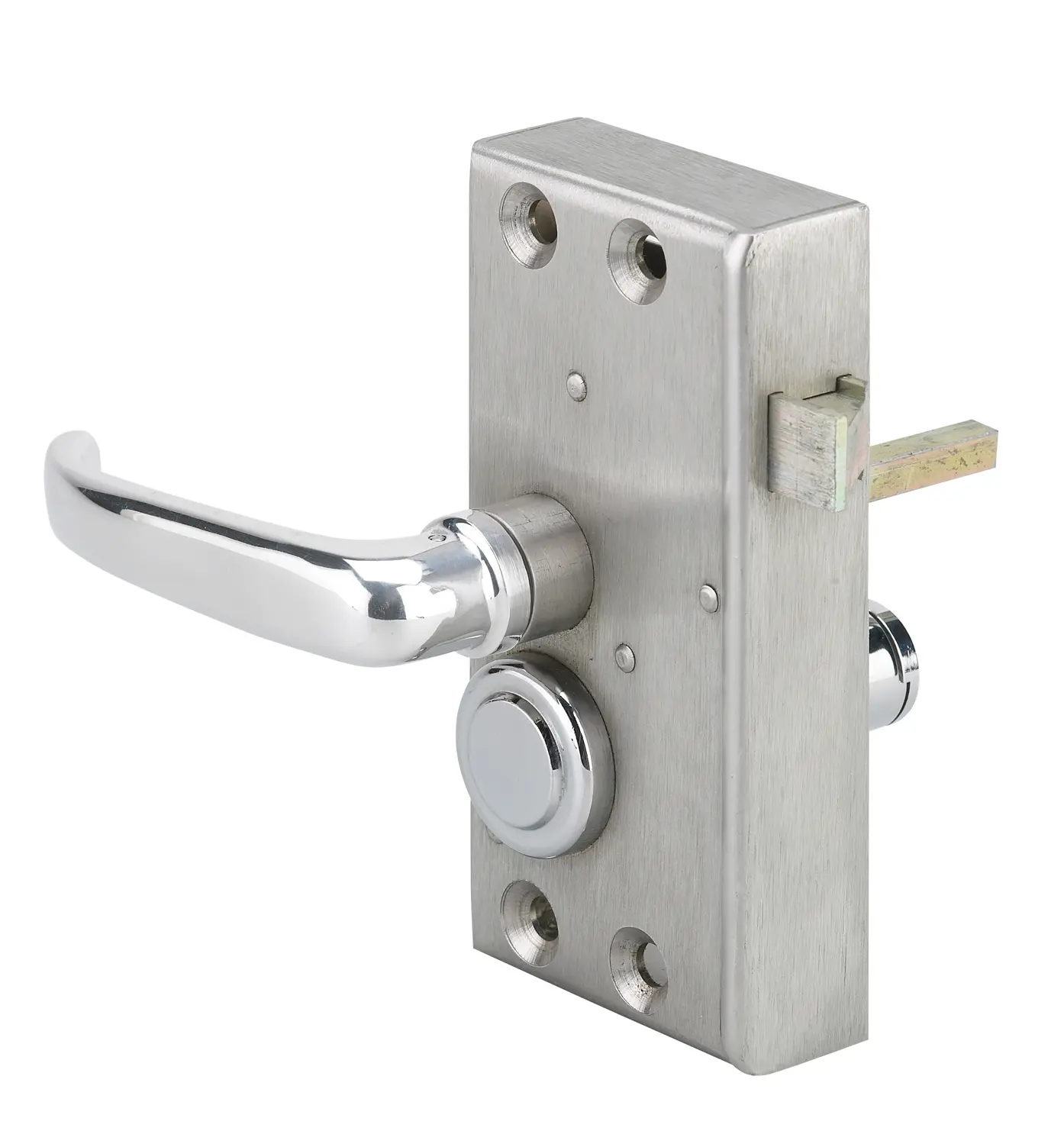

Rim latch lock for cabin partition door

From outside: key action on latch, automatic locking when the key is removed and door closed.

From Inside: free exit by operating the handle.

Features

  • Robust design with high resistance to corrosion
  • Latch Lock
  • Locking mechanism made of stainless steel
  • Aluminium handle
  • Lock delivered with 1 internal handle and 1 external handle (not shown on picture and drawing)

Suggested application of use

Driver Cabin Partitions

Specifications

Technical features

Lock Application TypeRim Lock
Anti Panic LockYes
Locking PointsSingle Point
Locking TypeRound Cylinder Deny, None, Square key lock
Closing MechanismMechanical
Locking ElementsLatch Only
Number of Levers0
Internal Parts with Anti Corrosion TreatmentYes
Silent LatchNo
Available Combinations0
Standard Warranty1 Year

Cylinder IncludedNo
Number of Keys0
Backset (mm)55
Case Height (mm)160
Case Depth (mm)29.5
Case Thickness (mm)80
Case MaterialStainless Steel
Case FinishBrushed Stainless Steel
Deadbolt Throw (mm)0
Latch Dimension11.5
Latch Throw (mm)11.5
Latch MaterialStainless Steel
Follower (mm)0
Material of the FollowerStainless Steel
Handle TypesFlat
