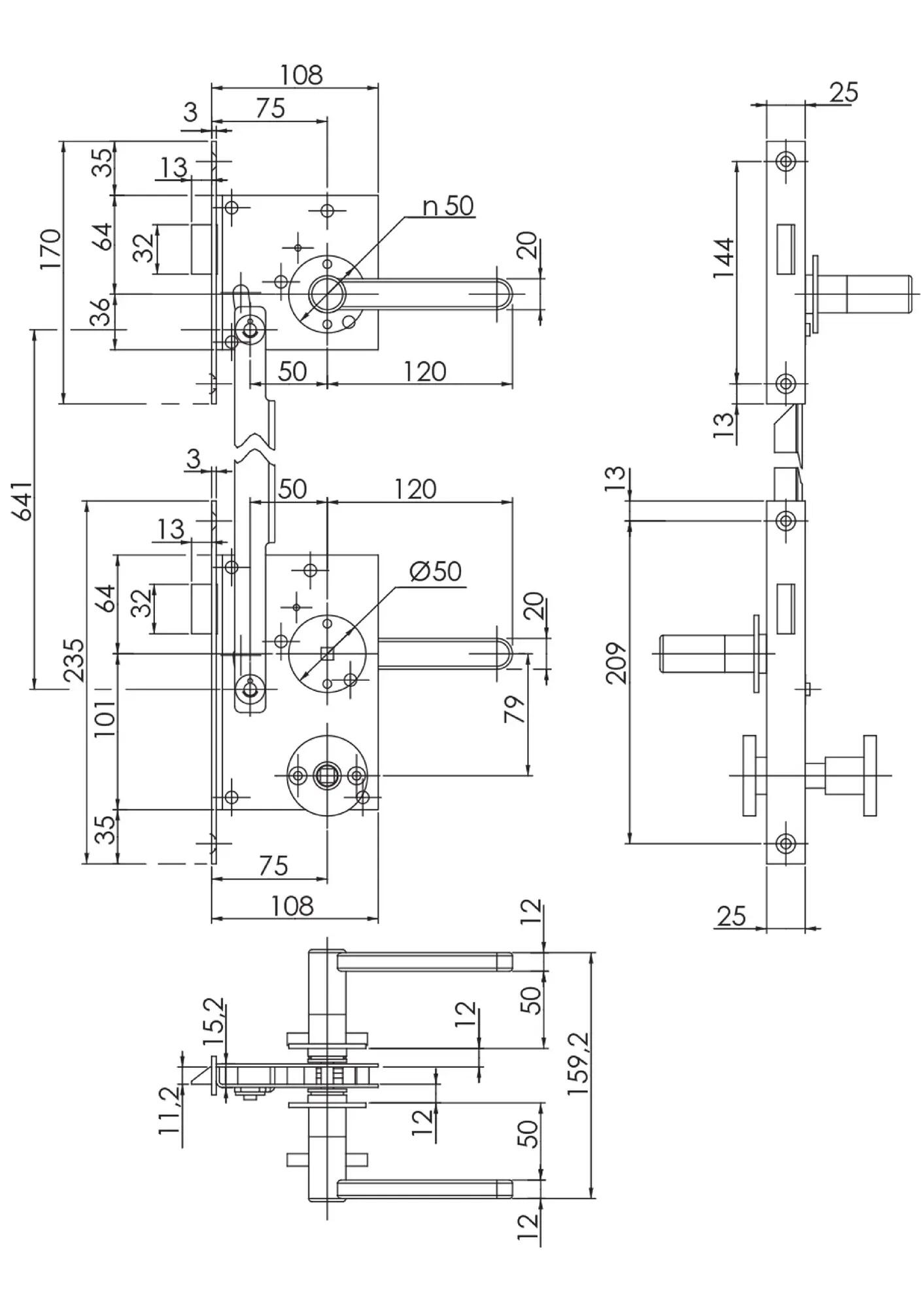

View technical drawing

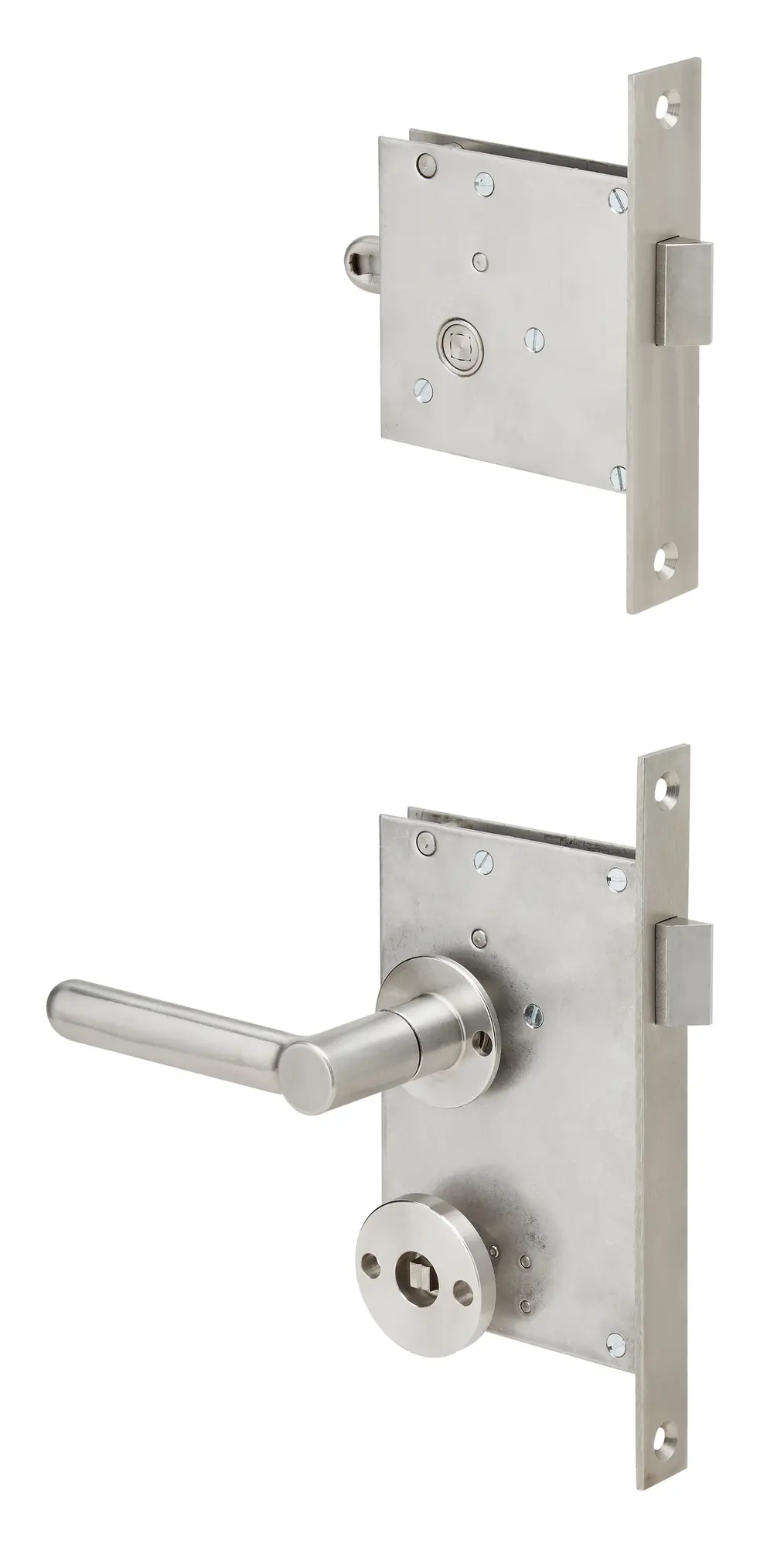

C08050F Staged lock

Staged lock for cabin door

From outside: unlocking by square key, operation of the handle.

From inside: free exit by operating the handle.

Features

  • High resistance to corrosion: Lock and mechanism made of stainless steel.
  • Staged lock
Handle Operated Lock

Suggested application of use

Cabin Access Doors

Specifications

Technical features

Lock Application TypeMortise Lock
Operation TypeKey Operated, Handle Operated
Anti Panic LockYes
Locking PointsMulti Point
Locking TypeSquare key lock, Round Cylinder Deny
Closing MechanismMechanical
Locking ElementsLatch Only
Special Security FunctionsFree Exit
Multi Point TypeRods
Internal Parts with Anti Corrosion TreatmentYes
Reversible LatchNo
Silent LatchNo
Available Keyed AlikeOptional
Compatible with Electric StrikeNo
Standard Warranty1 Year

Case Height (mm)165
Case Depth (mm)12
Case Thickness (mm)105
Case MaterialStainless Steel
Case FinishBrushed Stainless Steel
Additional Locking Point MaterialStainless Steel
Deadbolt MaterialStainless Steel
Latch Dimension13
Latch Throw (mm)13.0
Latch MaterialStainless Steel
Follower TypeSquare Follower
Follower (mm)8
Material of the FollowerStainless Steel
Forend ShapeAngled
Forend Length (mm)Lower: 235, Upper: 170
Forend Thickness3
Forend MaterialStainless Steel
Forend FinishBrushed Stainless Steel
