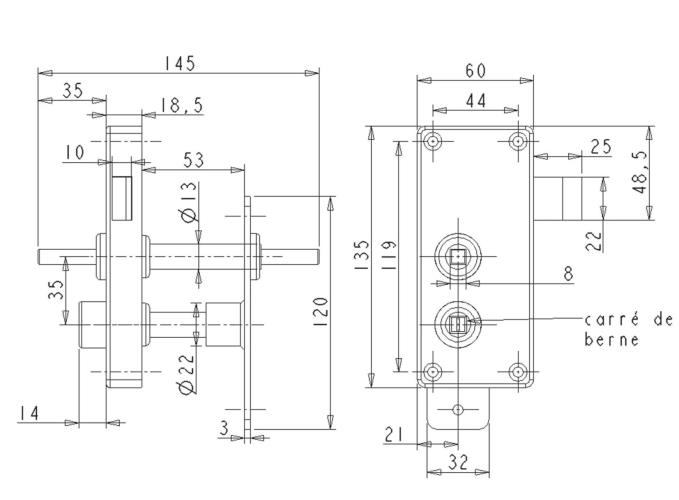

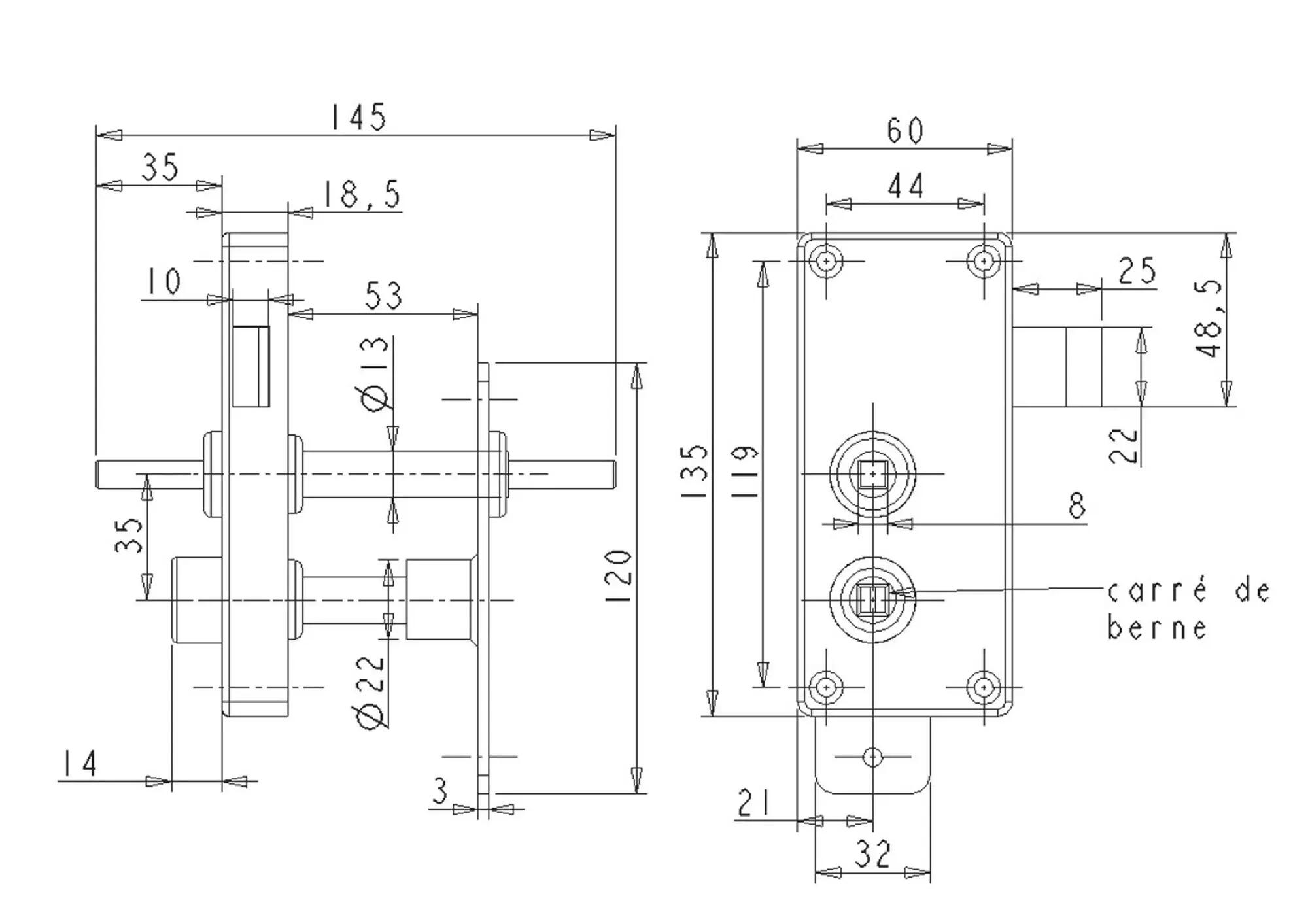

View technical drawing

CD1859F Rim latch lock

Rim latch lock for cabin partition door

From outside: unlocking by square key, operation of the handle.

From inside: unlocking by square key, operation of the handle.

Features

  • Robust design, high resistance to corrosion
  • Lock and mechanism made of stainless steel
  • Delivered with handles

Suggested application of use

Driver Cabin Partitions

Specifications

Technical features

Lock Application TypeRim Lock
Anti Panic LockNo
Locking PointsSingle Point
Locking TypeSquare key lock
Closing MechanismMechanical
Locking ElementsLatch Only
Internal Parts with Anti Corrosion TreatmentYes
Silent LatchNo
Compatible with Electric StrikeNo
Standard Warranty1 Year

Number of Keys0
Backset (mm)39
Case Height (mm)135
Case Depth (mm)18.5
Case Thickness (mm)60
Case MaterialStainless Steel
Case FinishStainless Steel
Latch Dimension25.0
Latch MaterialStainless Steel
Material of the FollowerStainless Steel
Handle TypesFlat
