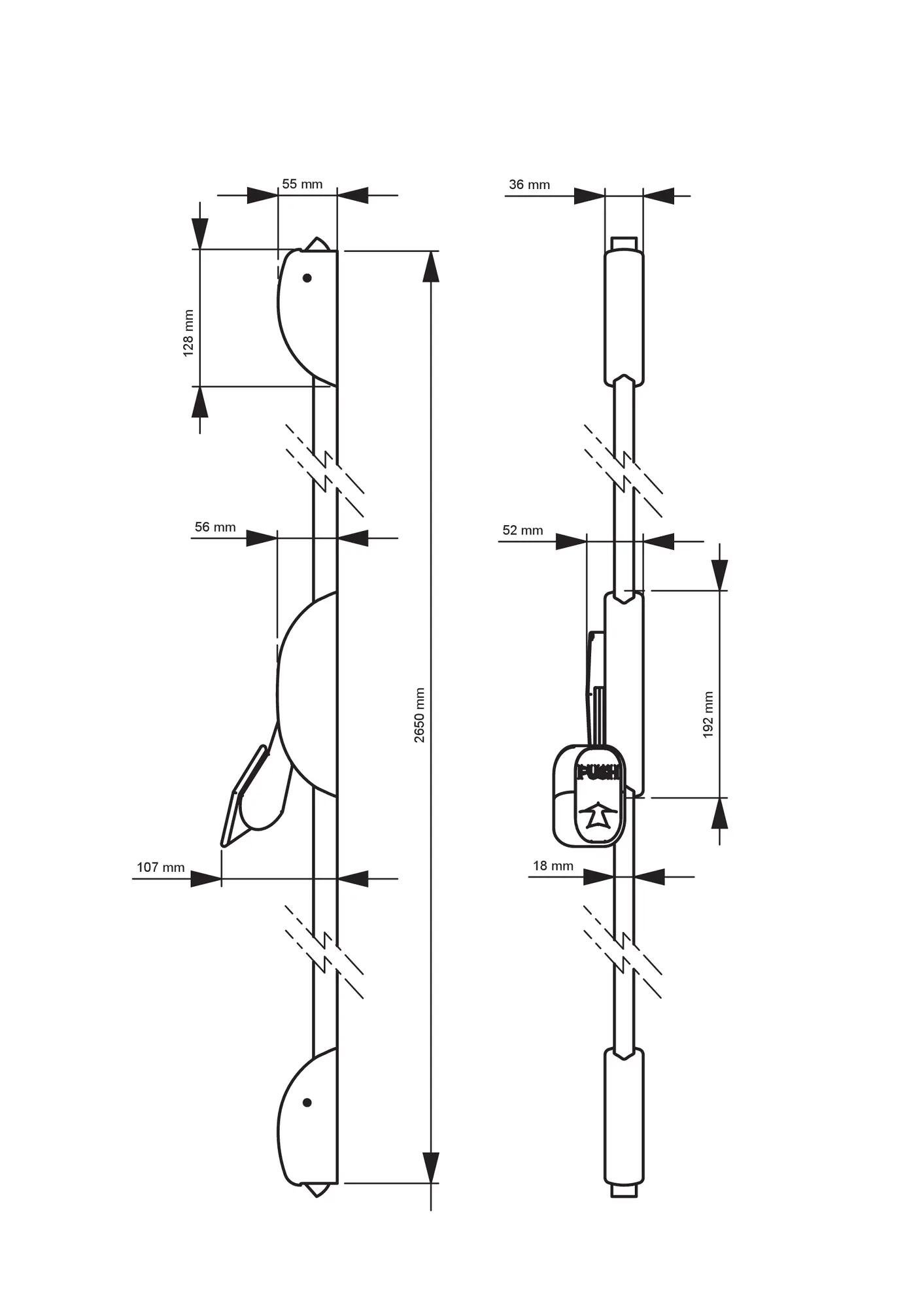

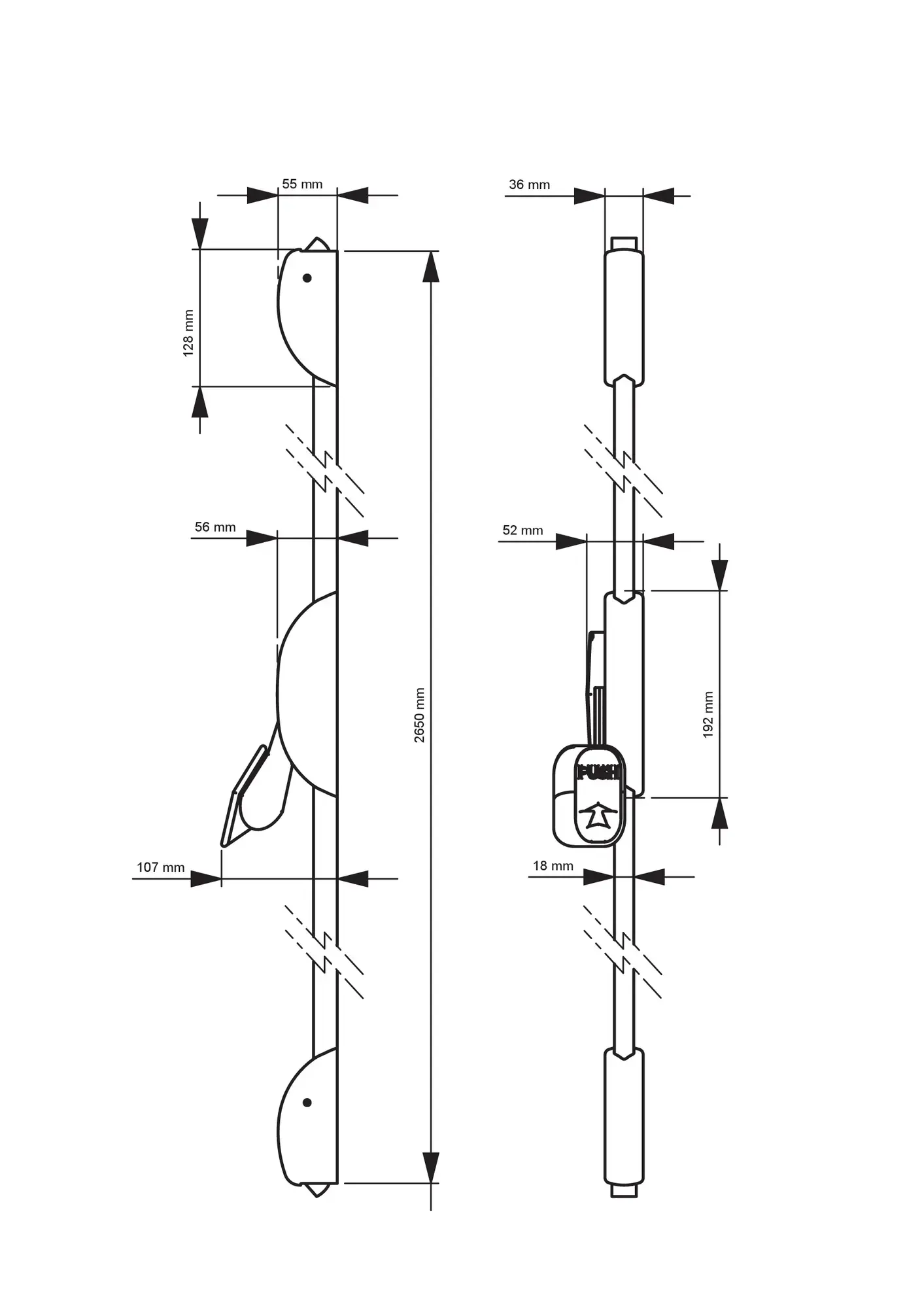

View technical drawing

Push PAD éO 16431DP Push pad

The eO push pad lock fits perfectly into the éO anti-panic range and secures a semi-fixed leaf.

Certified according to European standard EN179: 2008, this cremone bolt meets the highest requirements in terms of safety and rapid and safe evacuation.

Standard fire protection associated with an elegant and modern design, the eO push pad fits on all door profiles (wood, metal, aluminum and PVC) and its steel rods can be re-cut on site for complete adaptability .

Equipped with a single push handle, this emergency closure is easy to use thanks to the good grip of its operating element. Moreover, thanks to its symmetrical mechanism, this cremone bolt is reversible without disassembly for total assembly flexibility.

Available in RAL 9006 gray finish, the éO push pad, with its adaptable rods for a height of more than 2 meters, is an unwavering ally of your emergency exits.
pad éO integrated into the range éO and allowing the securing of a semi-fixed leaf


  • Push pad éO certified according to standard EN 179: 2008
  • Elegant design in harmony with the éO range
  • Reversible without disassembly
Certification EN 179
Certification Fire Resistant

Suggested application of use

Education, Hospitals, Industrial, Medium to Large Sized Businesses, Hotels, Plants, Public Buildings, Small to Medium Sized Businesses, Technical Rooms


Technical features

Fire ResistantYes
Number of Locking Points2
Panic Device TypeExit Pad
Standard Warranty1 Year

Overall Device Length (mm)36
Overall Device Height (mm)192
Cover FinishGrey RAL 9006
Maximum Door Height (mm)2650
Latch PositionTop and Bottom
Strike TypeAdjustable
