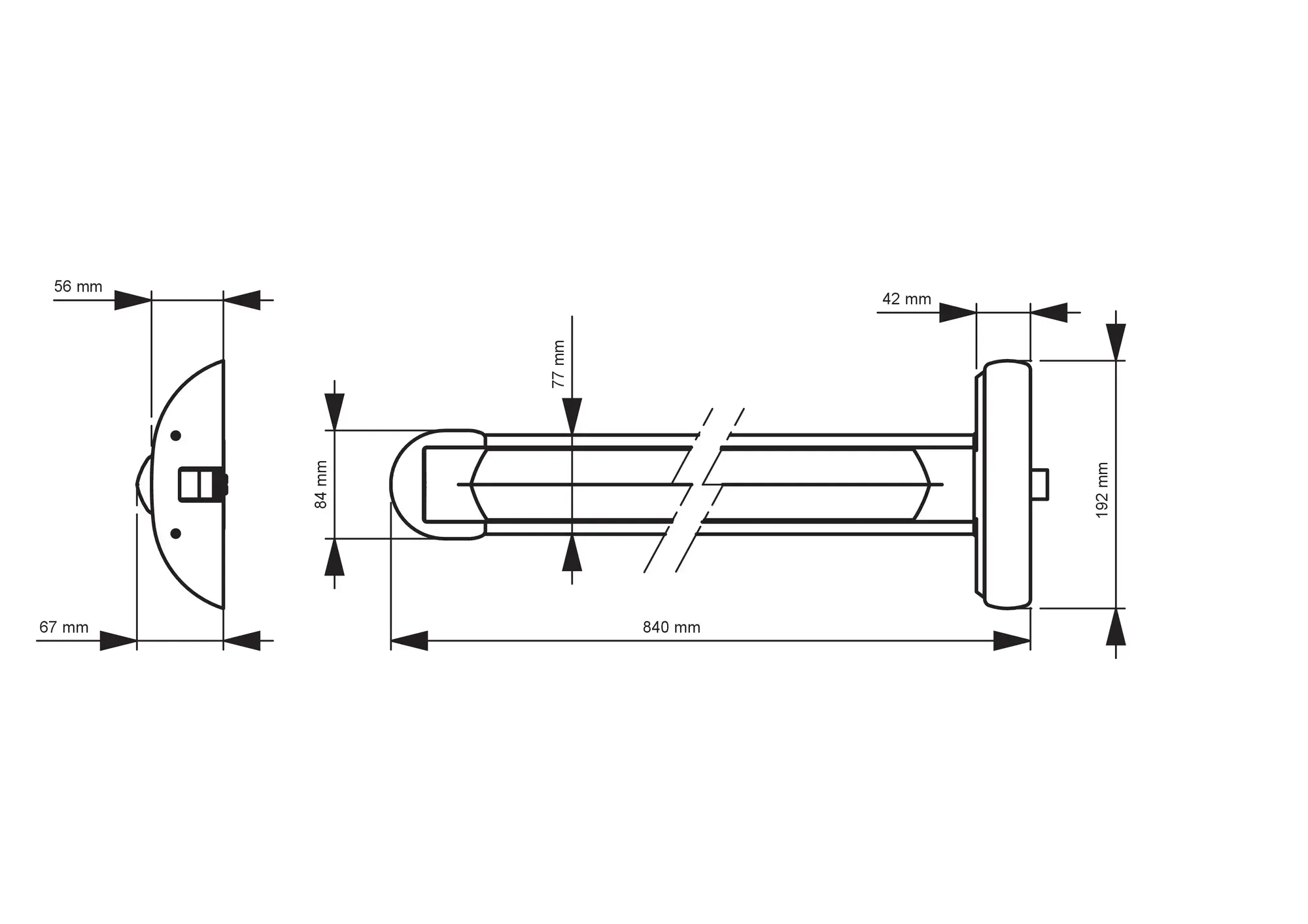

View technical drawing

Pushbar éO 1 point 1 point push bar

The 1 point EO is a push bar for an emergency exit. It offers quick and safe evacuation in an emergency.

Its design and fire rating guarantee performance and durability

Ideal for 1-leaf doors or 2-leaf doors associated with a 2-point bar

Télécharger la fiche produit

Features

  • The éO range meets the highest demands. It is certified according to European standard EN 1125: 2008
  • Standard fire lock
  • Reversible panic bar
  • Adjustable bar according to the width of the door by simple cutting
  • Narrow lockcase allowing installation on all types of doors
  • Contemporary and elegant design
Certification EN 1125
Certification Fire Resistant

Suggested application of use

Education, Airports, Financial, Hospitals, Hotels, Industrial, Medium to Large Sized Businesses, Offices, Public Buildings, Small to Medium Sized Businesses

Specifications

Technical features

Fire ResistantYes
Number of Locking Points1
Closing MechanismMechanical
Panic Device TypeTouch Bar
Door LeafSingle Leaf Door, Double Leaf Door: Active or Passive
Standard Warranty1 Year

EN 1125:2008377B1422AA

Overall Device Length (mm)42
Overall Device Height (mm)192
Bar Lengths (mm)1150
Cover FinishGrey RAL 9006
HandingReversible
Latch PositionSide
Latch MaterialSteel
Follower Square Dimension (mm)8
Strike TypeAdjustable

Optional Accessories

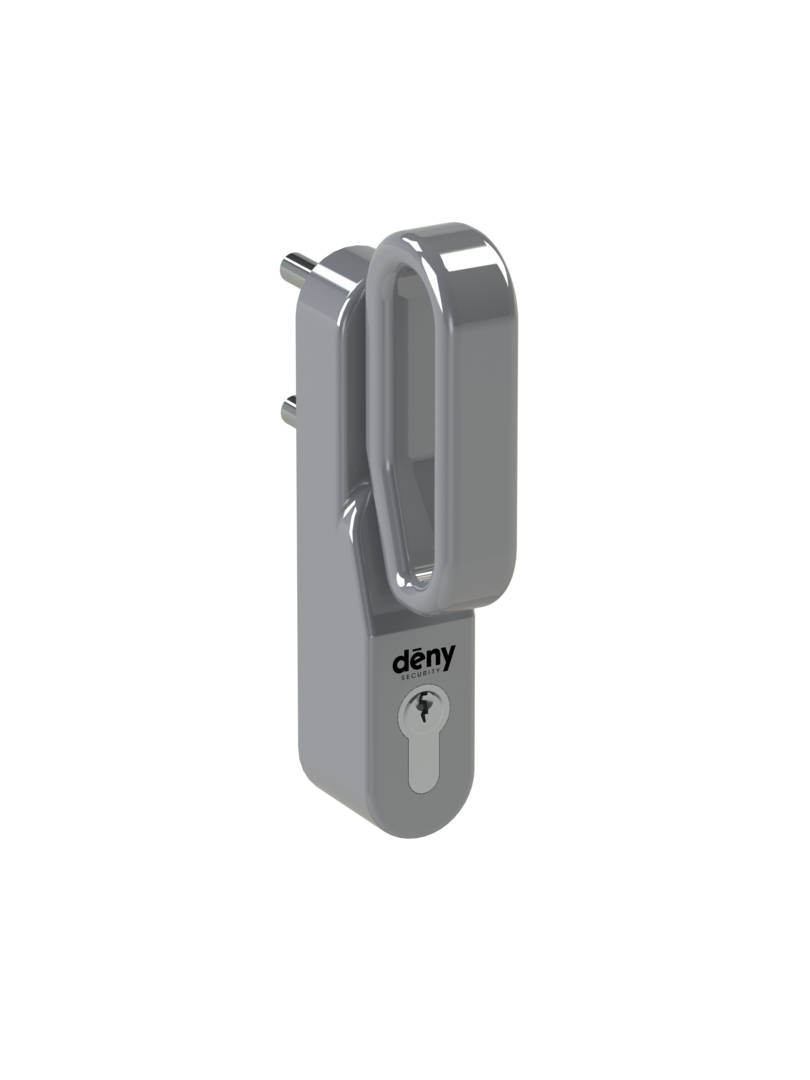

Knob and cylinder éO

Knob and cylinder éO

External mechanical maneuver with button and European cylinder. EO range
Handle and cylinder éO

Handle and cylinder éO

External mechanical maneuver with handle and European cylinder. EO range
Rotary handle and cylinder éO

Rotary handle and cylinder éO

External mechanical maneuver with rotary handle and European cylinder.
