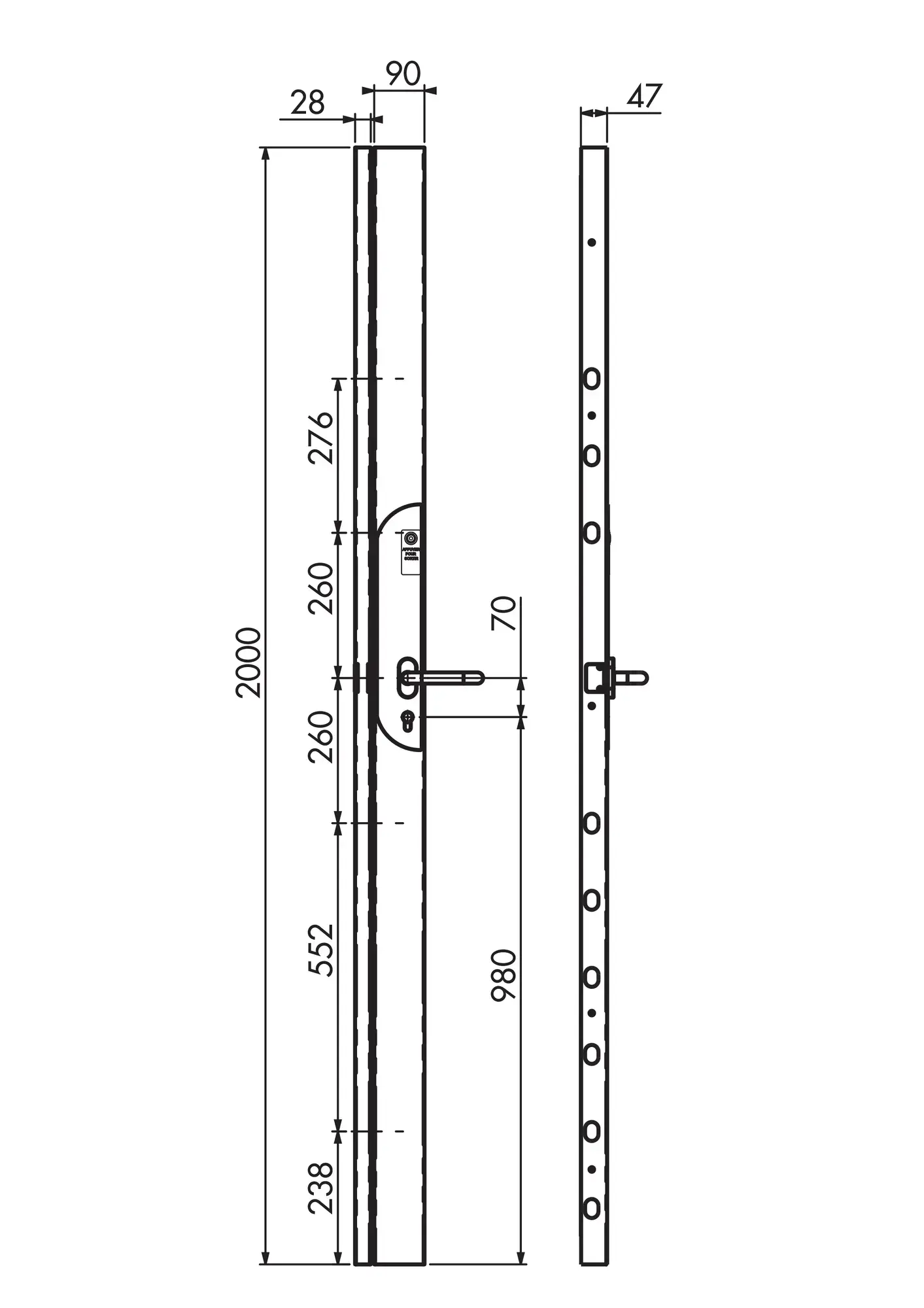

View technical drawing

LSS Multi-point rim motorized lock

2 to 9 point reversible motorized electric lock.
High security lock certified CR4 / CR5 with door manufacturers.

Features

  • Reversible motorized electric lock allowing the electric operation of 2 to 9 side bolts and a latch bolt.
  • Two dimensions depending on the model: 90 mm or 60 mm.
  • Latch bolt preventing door anti-rebound.
  • Lock operating on a voltage range of 12V to 48V-2.5A max.
  • Free exit version
  • Electrically locked outlet version not approved or NFS 61-937 approved.
  • Dry contacts for information.
Motorized
Interaxis 70
European Profile Cylinder

Suggested application of use

Financial, Public Buildings, Education, Hospitals, Industrial, Small to Medium Sized Businesses, Medium to Large Sized Businesses, Offices, Airports, Plants

Specifications

Technical features

Fire Resistant90 Minutes
Patent ProtectionYes
Lock Application TypeRim Lock
Locking PointsMulti Point
Locking TypeRound Cylinder Deny, European Profile Cylinder
Closing MechanismMotorised
Locking ElementsDeadbolt & Latch
Special Security FunctionsFree Exit,Locking of Interior Manipulation,Additional locking
Deadbolt OperationStandard
Latch TypeAdjustable Latch
ReversibleYes
Lock HandingReversible
Operation ModeFail-safe, Fail-Secure
Standard Warranty1 Year
Communication TechnologyRS 485

Patent ProtectionYes

Optional FinishesRAL
Cylinder LengthDépend de l'épaisseur de la porte
Interaxis (mm)70
Case Height (mm)2000
Case Depth (mm)47 mm
Case MaterialStainless Steel
Case FinishBrushed Stainless Steel
Optional Additional Locking PointsYes
Deadbolt ShapeRound Fixed
Deadbolt MaterialStainless Steel
Deadbolt DimensionDiameter 22 mm
Deadbolt Throw (mm)25
Latch Dimensiondiameter 18 mm
Latch Throw (mm)14
Latch PositionMiddle Latch Bolt
Latch MaterialStainless Steel
Follower TypeSquare Follower
Follower (mm)8
Material of the FollowerStainless Steel
Forend MaterialStainless Steel
Forend FinishBrushed Stainless Steel
Strike Thickness (mm)28
Strike Depth (mm)47
Strike Height (mm)2000
Power TypeWired
Current ConsumptionConsommation permanente: 90 mA sous 12VDC (TBTS), Consommation maximale: 2,5 A sous 12VDC (TBTS)
Voltage Range12V, 24V
Voltage TypeDC
