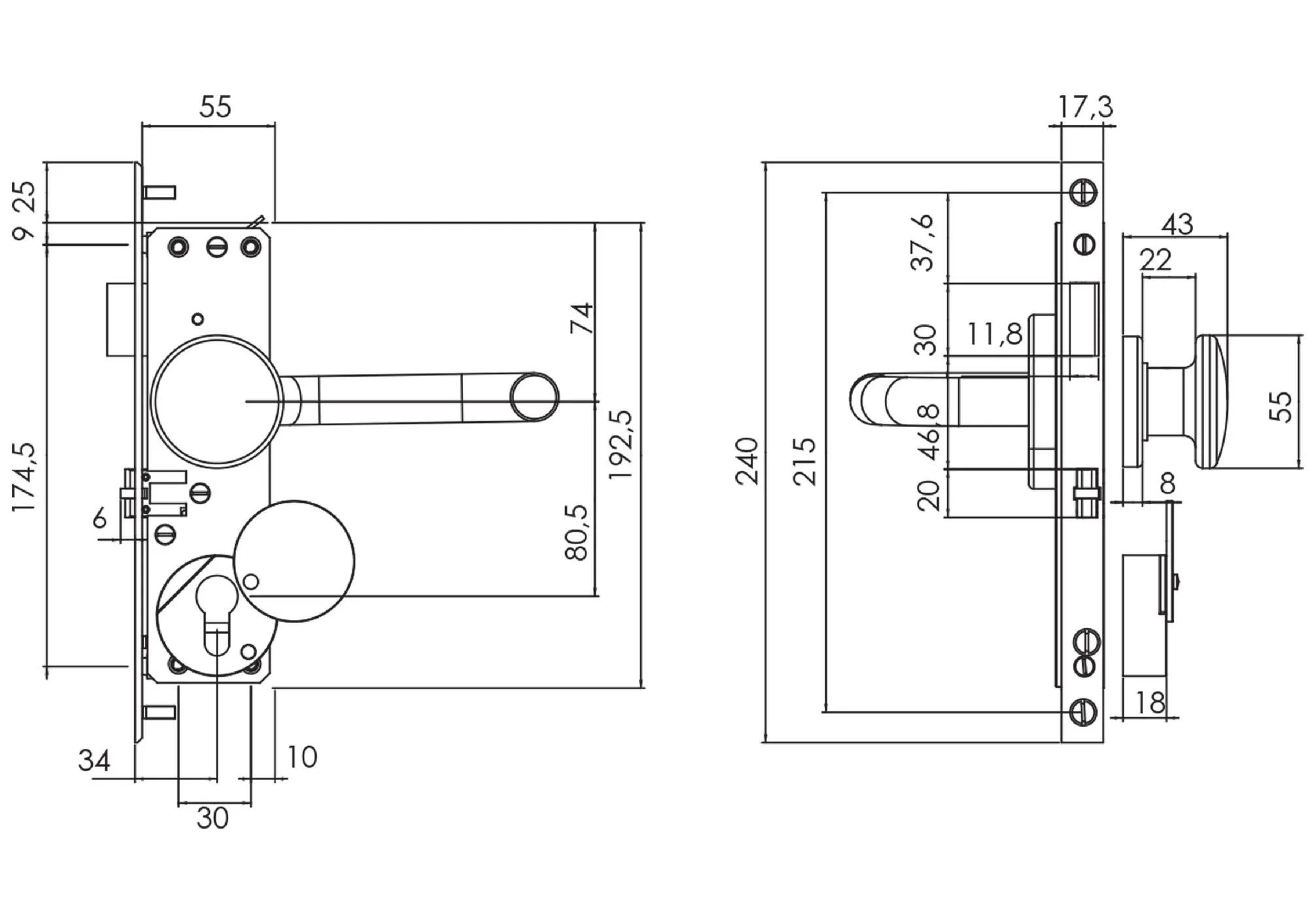

View technical drawing

CD1668F Mortise lock with security trigger

Mortise lock with security trigger for cabin partition door

From outside: operation of the latch by key (europrofile cylinder), pulling knob.

From inside: free exit by operating the handle.

Features

  • Anti-vandalism function: Latch lock and security trigger
  • Lock and mechanism made of stainless steel
  • Cover plate made of stainless steel
  • Mortice lock
Handle Operated Lock
European Profile Cylinder

Suggested application of use

Driver Cabin Partitions

Specifications

Technical features

Lock Application TypeMortise Lock
Operation TypeHandle Operated, Cylinder Operated
Anti Panic LockYes
Locking PointsSingle Point
Locking TypeEuropean Profile Cylinder
Closing MechanismMechanical
Locking ElementsLatch & Trigger
Special Security FunctionsLocking of Interior Manipulation,Free Exit
Internal Parts with Anti Corrosion TreatmentYes
Reversible LatchNo
Silent LatchNo
Available Keyed AlikeOptional
Compatible with Electric StrikeNo
Standard Warranty1 Year

Interaxis (mm)80
Backset (mm)34
Backset Without Forend (mm)32
Case Height (mm)192.5
Case Depth (mm)16
Case Thickness (mm)55
Case MaterialStainless Steel
Case FinishBrushed Stainless Steel
Latch Dimension10
Latch Throw (mm)10.0
Latch MaterialStainless Steel
Roller (mm)6
Roller MaterialStainless Steel
Material of the FollowerStainless Steel
Forend ShapeAngled
Forend Length (mm)240
Forend MaterialStainless Steel
Forend FinishStainless Steel
